Floating Ball Valves

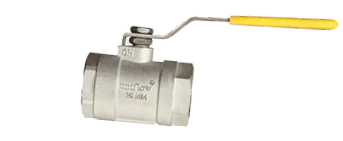

Single Piece Screwed Ball Valve
Body Style
:
Single Piece
Ports
:
Reduce Port
Size Range
:
¼ “ to 2” (6mm to 50mm)
Temperature
:
205° C (400° F)
Pr. Rating
:
PN 10
End Connection
:
BSP / NPT
Single Piece Flanged Ball Valve
Body Style
:
Single Piece
Ports
:
Reduce Port
Size Range
:
½ “ to 6” (15mm to 150mm)
Temperature
:
205° C (400° F)
Pr. Rating
:
CL150 / 300
End Connection
:
Flanged CL150 / 300
Two Piece Screwed Ball Valve
Body Style
:
Two Piece
Ports
:
Reduce Port \ Full Port
Size Range
:
½ “ to 4” (15mm to 100mm)
Temperature
:
205° C (400° F)
Pr. Rating
:
CL 800
End Connection
:
BSP / NPT

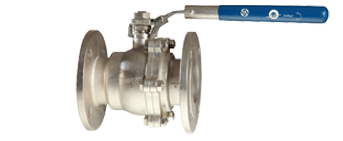

Two Piece Flanged Ball Valve
Body Style
:
Two Piece
Ports
:
Reduce Port \ Full Port
Size Range
:
½ “ to 8” (15mm to 200mm)
Temperature
:
205° C (400° F)
Pr. Rating
:
CL 150 \ 300 \ 600
End Connection
:
Flanged CL150 / 300 / 600
Three Piece Screwed Ball Valve
Body Style
:
Three Piece
Ports
:
Reduce Port \ Full Port
Size Range
:
¼ “ to 4” (6mm to 100mm)
Temperature
:
205° C (400° F)
Pr. Rating
:
CL 800
End Connection
:
BSP / NPT / SW

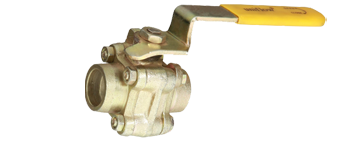

Forged Three Piece Screwed Ball Valve
Body Style
:
Three Piece
Ports
:
Reduce Port
Size Range
:
¼ “ to 2” (6mm to 50mm)
Temperature
:
205° C (400° F)
Pr. Rating
:
CL 800
End Connection
:
BSP / NPT /SW

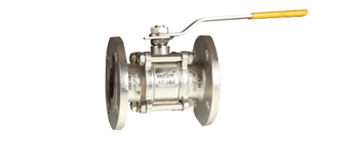

Three Piece Flanged Ball Valve
Body Style
:
Three Piece
Ports
:
Reduce Port \ Full Port
Size Range
:
½ “ to 8” (15mm to 200mm)
Temperature
:
205° C (400° F)
Pr. Rating
:
CL 150 \ 300 \ 600
End Connection
:
Flanged CL150 / 300 / 600
